Dyno Results
Vital Statistics
  • Vehicle / Motor
  • Dyno Type
  • Dyno Correction
  • Download Dyno Files
BMW E9x M3 (S65 Motor)
Dynojet
STP / STD
Download-1
Configuration (from Baseline)
  • Both CAT Delete
  • Akrapovic GT4 Race Exhaust
  • ESS Tuning ECU
  • 91 Octane (US), 95 Octane (RON)
  • Dual Clutch Transmission
Modification (since Baseline)
  • Alekshop 4.6L Stroker Motor
  • Schrick 284 Degree Cams
  • ESS Underdrive Pulley
Measured Results:
  • Torque
  • Horsepower
316 FT/LBS
428 HP
@ 5780 RPM
@ 8130 RPM
(428.4 NM)
(433.9 PS)
(43.69 KGM)
(319.2 KW)
Baseline Measurements:
  • Torque
  • Horsepower
279 FT/LBS
389 HP
@ 4040 RPM
@ 8320 RPM
(378.3 NM)
(394.4 PS)
(38.57 KGM)
(290.1 KW)
Performance Gains:
  • Torque
  • Horsepower
37 FT/LBS
39 HP
(50.2 NM)
(39.5 PS)
(5.12 KGM)
(29.1 KW)
Dyno Graphs:

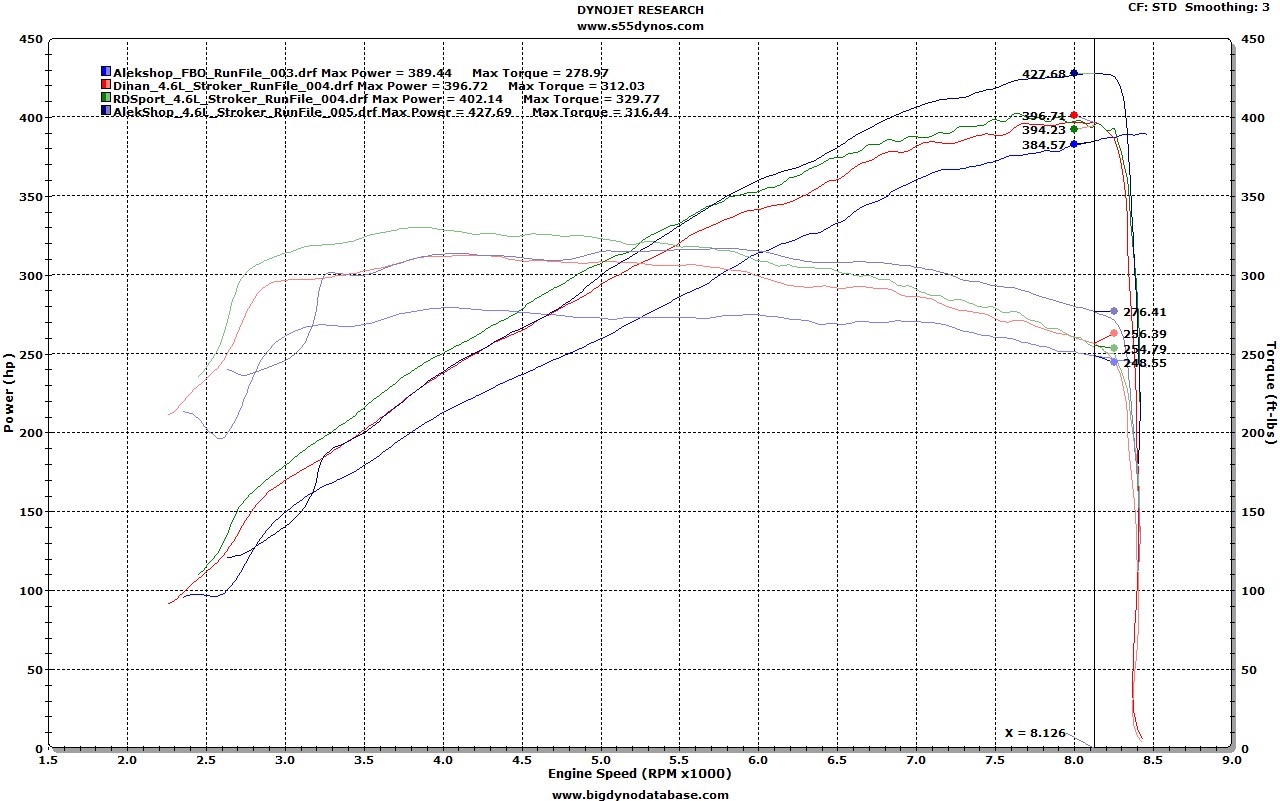

Comparing: FBO, Dinan, RD Sport, Alekshop Strokers
Alternate Images:

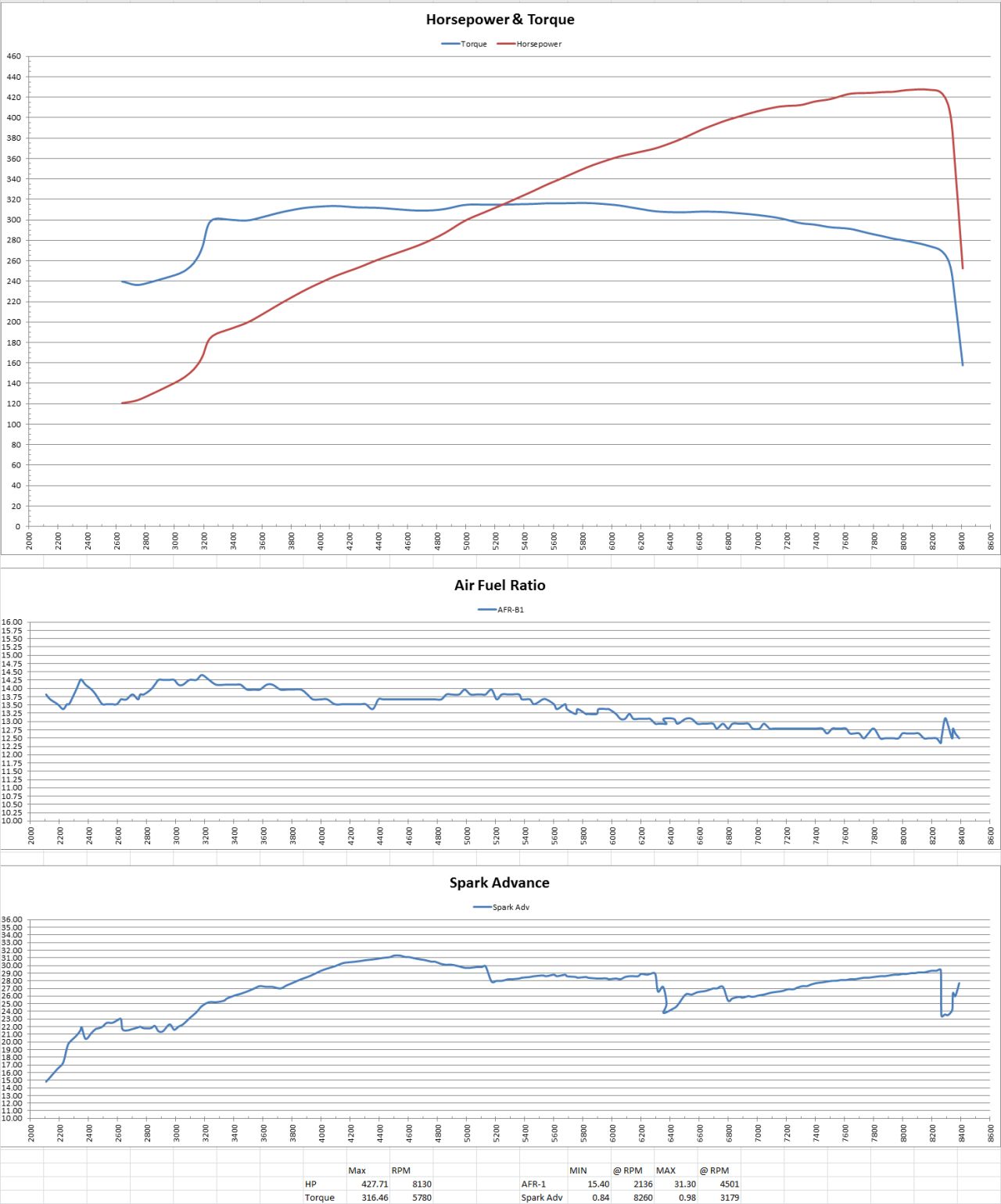

Dyno Details: HP, TQ, AFR, Spark Advance
Other images:
Comparison to show Cams gains

Car and Modifications:

  • 2013 BMW M3, Limerock Edition
  • Akekshop 4.6L Stroker Engine
  • Schrick 284-degree Cams
  • Akrapovic GT4 Exhaust
  • Both CAT Delete
  • ESS ECU Tune
  • 91 Octane
  • DCT

Conditions (Dynojet Weather Station):

  • Temperature:: 83.06 degrees F
  • Atmospheric pressure: 29.96 inHg
  • Humidity: 25%
  • Density Altitude:  1658  Ft.
  • SAE Correction: 0.989
  • STD Correction:  1.014
  • Uncorrected: 1.000

Results:

  • SAE Corrected: 417whp @ 8130 RPM, 309wtq @ 5780 RPM
  • STD Corrected: 428whp, 316wtq
  • Uncorrected: 422whp, 312wtq

Dyno Database:

Individual Dyno Results:

Individual dyno results are shown below.  SAE corrected results are shown twice, using two different sources.  The first source (djc) are the SAE corrected results straight from the Dynojet.  The second source (sae) of SAE corrected results are obtained by using the Kestral 4500 weather station data for each individual dyno run and running it through an independent SAE correction formula.  This ensures that the dyno results are accurate and can be independently audited and verified for authenticity and accuracy.

The legend below has the following meaning:

  • Dyno Run:  Dyno run file
  • Timestamp
  • Temp(F) = Temperature (Farenheit)
  • RelH = Relative Humidity
  • Pressure(Hg) = Barometric Pressure
  • DA(ft) = Density Altitude
  • WHP(unc) = Uncorrected wheel horsepower
  • WTQ(unc) = Uncorrected wheel torque
  • WHP(SAEd) = Dynojet SAE corrected wheel horsepower (SAE-1340 PRE-2004)
  • WTQ(SAEd) = Dynojet corrected wheel torque (SAE-1349 PRE-2004)
  • WHP(SAEk) = SAE-Adapted wheel horsepower (SAE-1349 2004+)
  • WTQ(SAEk) = SAE-Adapted wheel torque (SAE-1349 2004+)
Dyno Run Timestamp Temp(F) RelH Press(Hg) DA(ft) WHP(unc) WTQ(unc) WHP(SAEd) WTQ(SAEd) WHP(SAEk) WTQ(SAEk)
Run_004 10:12:48 77.50 46.50 29.85 1511 420.3 309.9 414.9 305.9 417.7 308.0
Run_005 10:14:28 77.90 46.40 29.85 1539 421.8 312.1 417.2 308.7 419.5 310.4

* Entry used for the Dyno Database
