Dyno Results
Vital Statistics
  • Vehicle / Motor
  • Dyno Type
  • Dyno Correction
  • Download Dyno Files
BMW E9x M3 (S65 Motor)
Dynojet
Uncorrected
Download-1
Configuration / Modifications:
  • Dinan 4.6L Stroker Motor
  • Dinan 2-Stage Underdrive Pulley
  • Both CAT Delete
  • Dinan Cross Pipe
  • Akrapovic Evolution Exhaust System (Titanium)
  • Dinan Stage-2 ECU
  • 91 Octane (US), 95 Octane (RON)
  • Dual Clutch Transmission
Measured Results:
  • Torque
  • Horsepower
313 FT/LBS
398 HP
@ 4250 RPM
@ 8110 RPM
(424.4 NM)
(403.5 PS)
(43.27 KGM)
(296.8 KW)

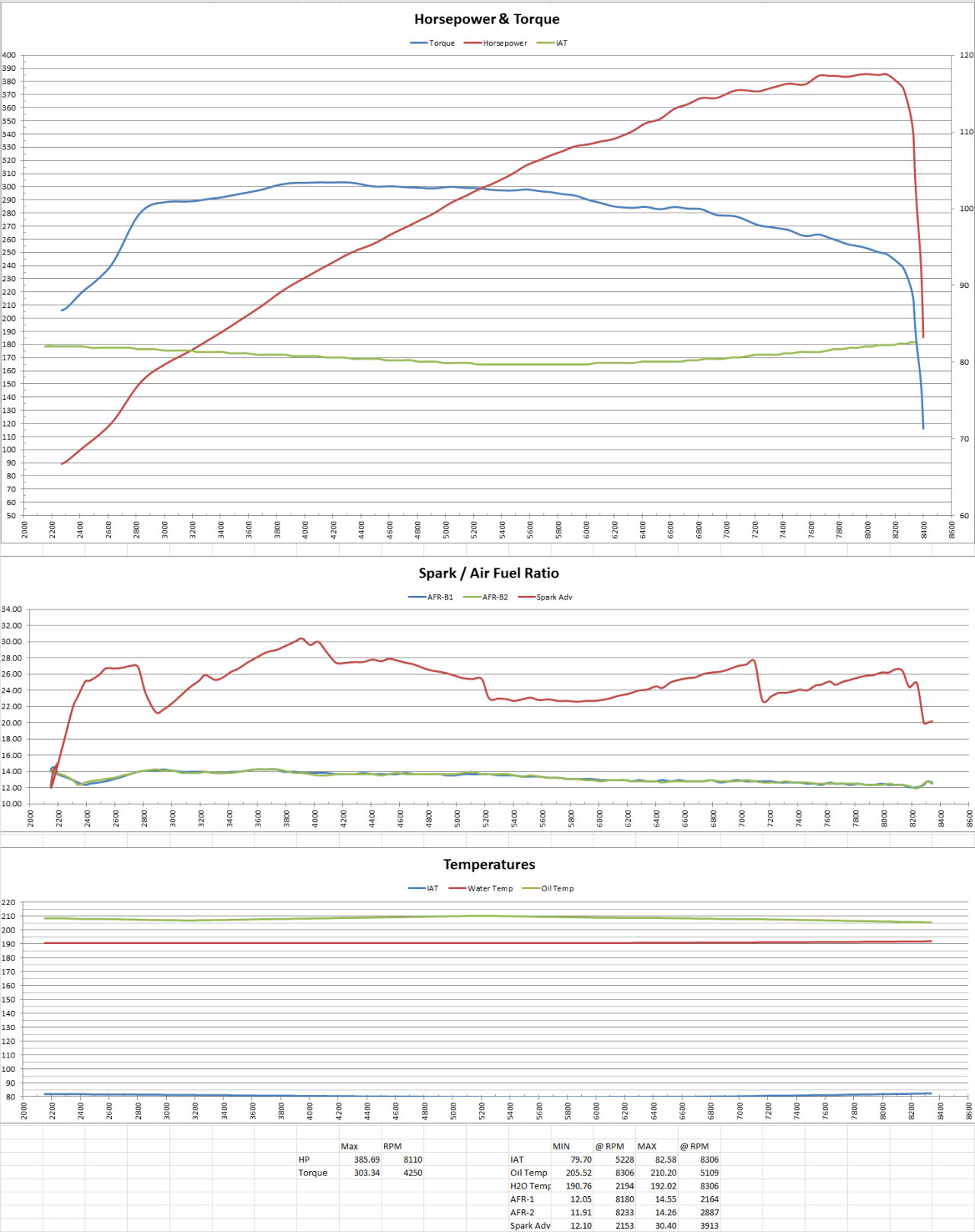

Dyno Graphs:
Alternate Images:

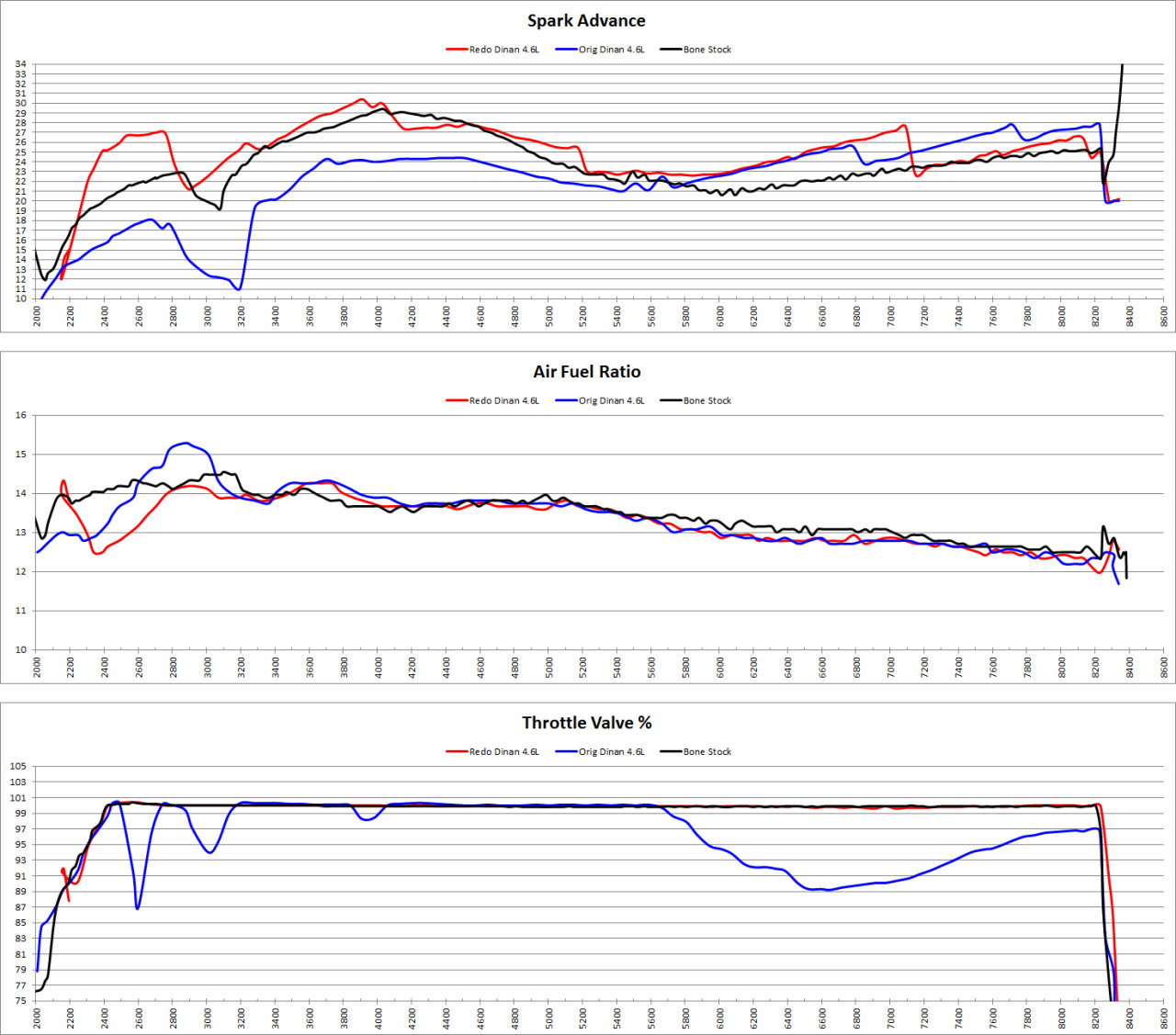

Spark & AFR Comparison with Baseline
Other images:

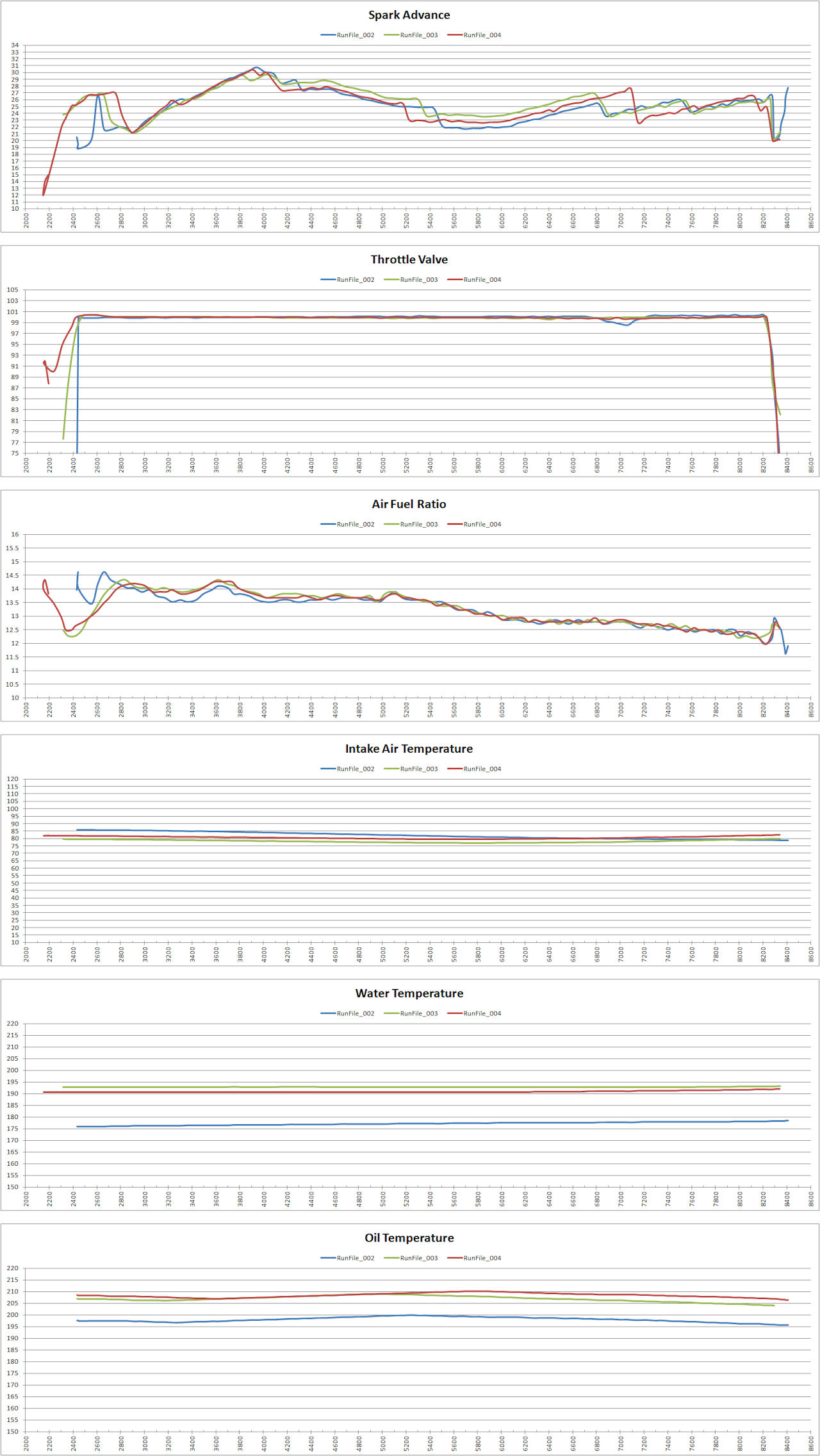

Spark, AFR, Temperature Details
Comparison of All Runs (Spark, Throttle Valve, AFR)

Car and Modifications:

  • 2011 BMW M3
  • Dinan 4.6L Stroker Motor
  • Dinan Underdrive Pulley
  • Dinan Stage-2 Intake
  • Dinan Throttle Bodies
  • Both CATLESS
  • Dinan X-Pipe
  • Akrapovic Evolution Exhaust
  • Dinan Stage-2 ECU Tune
  • 91 Octane
  • DCT

Conditions (Dynojet Weather Station):

  • Temperature:: 68.26 degrees F
  • Atmospheric pressure: 29.94 inHg
  • Humidity: 45%
  • Density Altitude:  211 Ft.
  • SAE Correction: 0.968
  • STD Correction:  0.996
  • Uncorrected: 1.000

Results:

  • SAE Corrected: 386whp @ 8110 RPM, 303wtq @ 4250 RPM
  • STD Corrected: 397whp, 312wtq
  • Uncorrected: 398whp, 313wtq

Dyno Database:

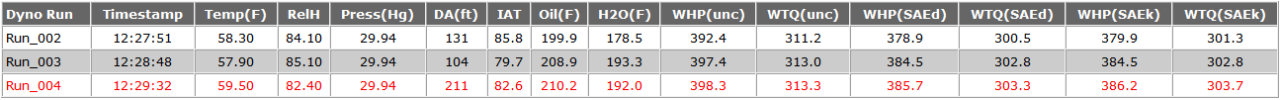

Individual Dyno Results:

Individual dyno results are shown below.  SAE corrected results are shown twice, using two different sources.  The first source (djc) are the SAE corrected results straight from the Dynojet.  The second source (sae) of SAE corrected results are obtained by using the Kestral 4500 weather station data for each individual dyno run and running it through an independent SAE correction formula.  This ensures that the dyno results are accurate and can be independently audited and verified for authenticity and accuracy.

The legend below has the following meaning:

  • Dyno Run:  Dyno run file
  • Timestamp
  • Temp(F) = Temperature (Farenheit)
  • RelH = Relative Humidity
  • Pressure(Hg) = Barometric Pressure
  • DA(ft) = Density Altitude
  • IAT = Intake Air Temperature
  • Oil(F) = Oil Temperature (Farenheit)
  • O2(F) = Water Temperature (Farenheit)
  • WHP(unc) = Uncorrected wheel horsepower
  • WTQ(unc) = Uncorrected wheel torque
  • WHP(SAEd) = Dynojet SAE corrected wheel horsepower (SAE-1340 PRE-2004)
  • WTQ(SAEd) = Dynojet corrected wheel torque (SAE-1349 PRE-2004)
  • WHP(SAEk) = SAE-Adapted wheel horsepower (SAE-1349 2004+)
  • WTQ(SAEk) = SAE-Adapted wheel torque (SAE-1349 2004+)

* Entry used for the Dyno Database



Graphs:

SAE Correction:



Comparison with Baseline:





STD Correction:



Uncorrected:



Engine Vital Statistics:



Comparison for all runs:
