Dyno Results
Vital Statistics
  • Vehicle / Motor
  • Dyno Type
  • Dyno Correction
  • Download Dyno Files
BMW E9x M3 (S65 Motor)
Dynojet
SAE (J1349)
Download-1
Configuration (from Baseline)
  • Dinan 4.6L Stroker Motor
  • Dinan 2-Stage Underdrive Pulley
  • Akrapovic Evolution Exhaust System (Titanium)
  • 91 Octane (US), 95 Octane (RON)
  • Dual Clutch Transmission
Modification (since Baseline)
  • Both CAT Delete
  • Dinan Cross Pipe
  • Dinan Stage-2 ECU
Measured Results:
  • Torque
  • Horsepower
303 FT/LBS
386 HP
@ 4250 RPM
@ 8110 RPM
(410.8 NM)
(391.4 PS)
(41.89 KGM)
(287.8 KW)
Baseline Measurements:
  • Torque
  • Horsepower
296 FT/LBS
375 HP
@ 3990 RPM
@ 8110 RPM
(401.3 NM)
(380.2 PS)
(40.92 KGM)
(279.6 KW)
Performance Gains:
  • Torque
  • Horsepower
7 FT/LBS
11 HP
( 9.5 NM)
(11.2 PS)
(0.97 KGM)
( 8.2 KW)
Dyno Graphs:
Comparison with Baseline
Alternate Images:
Spark & AFR Comparison with Baseline
Other images:
Spark, AFR, Temperature Details
Comparison of All Runs (Spark, Throttle Valve, AFR)
Weather Conditions

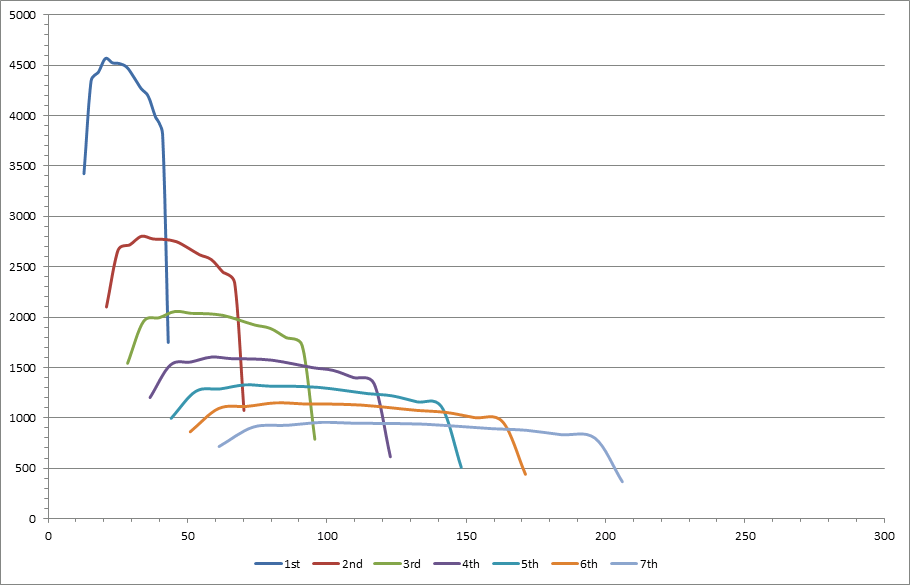

Thrust Curve

Car and Modifications:

  • 2011 BMW M3
  • Dinan 4.6L Stroker Motor
  • Dinan Underdrive Pulley
  • Dinan Stage-2 Intake
  • Dinan Throttle Bodies
  • Both CATLESS
  • Dinan X-Pipe
  • Akrapovic Evolution Exhaust
  • Dinan Stage-2 ECU Tune
  • 91 Octane
  • DCT

Conditions (Dynojet Weather Station):

  • Temperature:: 68.26 degrees F
  • Atmospheric pressure: 29.94 inHg
  • Humidity: 45%
  • Density Altitude:  211 Ft.
  • SAE Correction: 0.968
  • STD Correction:  0.996
  • Uncorrected: 1.000

Results:

  • SAE Corrected: 386whp @ 8110 RPM, 303wtq @ 4250 RPM
  • STD Corrected: 397whp, 312wtq
  • Uncorrected: 398whp, 313wtq

Dyno Database:



Individual Dyno Results:

Individual dyno results are shown below.  SAE corrected results are shown twice, using two different sources.  The first source (djc) are the SAE corrected results straight from the Dynojet.  The second source (sae) of SAE corrected results are obtained by using the Kestral 4500 weather station data for each individual dyno run and running it through an independent SAE correction formula.  This ensures that the dyno results are accurate and can be independently audited and verified for authenticity and accuracy.

The legend below has the following meaning:

  • Dyno Run:  Dyno run file
  • Timestamp
  • Temp(F) = Temperature (Farenheit)
  • RelH = Relative Humidity
  • Pressure(Hg) = Barometric Pressure
  • DA(ft) = Density Altitude
  • IAT = Intake Air Temperature
  • Oil(F) = Oil Temperature (Farenheit)
  • O2(F) = Water Temperature (Farenheit)
  • WHP(unc) = Uncorrected wheel horsepower
  • WTQ(unc) = Uncorrected wheel torque
  • WHP(SAEd) = Dynojet SAE corrected wheel horsepower (SAE-1340 PRE-2004)
  • WTQ(SAEd) = Dynojet corrected wheel torque (SAE-1349 PRE-2004)
  • WHP(SAEk) = SAE-Adapted wheel horsepower (SAE-1349 2004+)
  • WTQ(SAEk) = SAE-Adapted wheel torque (SAE-1349 2004+)

* Entry used for the Dyno Database



Graphs:

SAE Correction:



Comparison with Baseline:





STD Correction:



Uncorrected:



Engine Vital Statistics:



Comparison for all runs:
