Dyno Results
Vital Statistics
  • Vehicle / Motor
  • Dyno Type
  • Dyno Correction
  • Download Dyno Files
  • Boost Log
BMW E9x M3 (S65 Motor)
Dynojet
Uncorrected
Download-1
Boost pressure (7.35 PSI) verified with boost log.
Configuration / Modifications:
  • VF Engineering VF620 Supercharger @ 7.35 PSI Boost
  • Both CAT Delete
  • RPI Cross Pipe
  • RPI CAT back exhaust
  • 91 Octane (US), 95 Octane (RON)
  • 6-Speed Manual Transmission
Measured Results:
  • Torque
  • Horsepower
387 FT/LBS
584 HP
@ 7380 RPM
@ 8250 RPM
(524.7 NM)
(592.1 PS)
(53.50 KGM)
(435.5 KW)

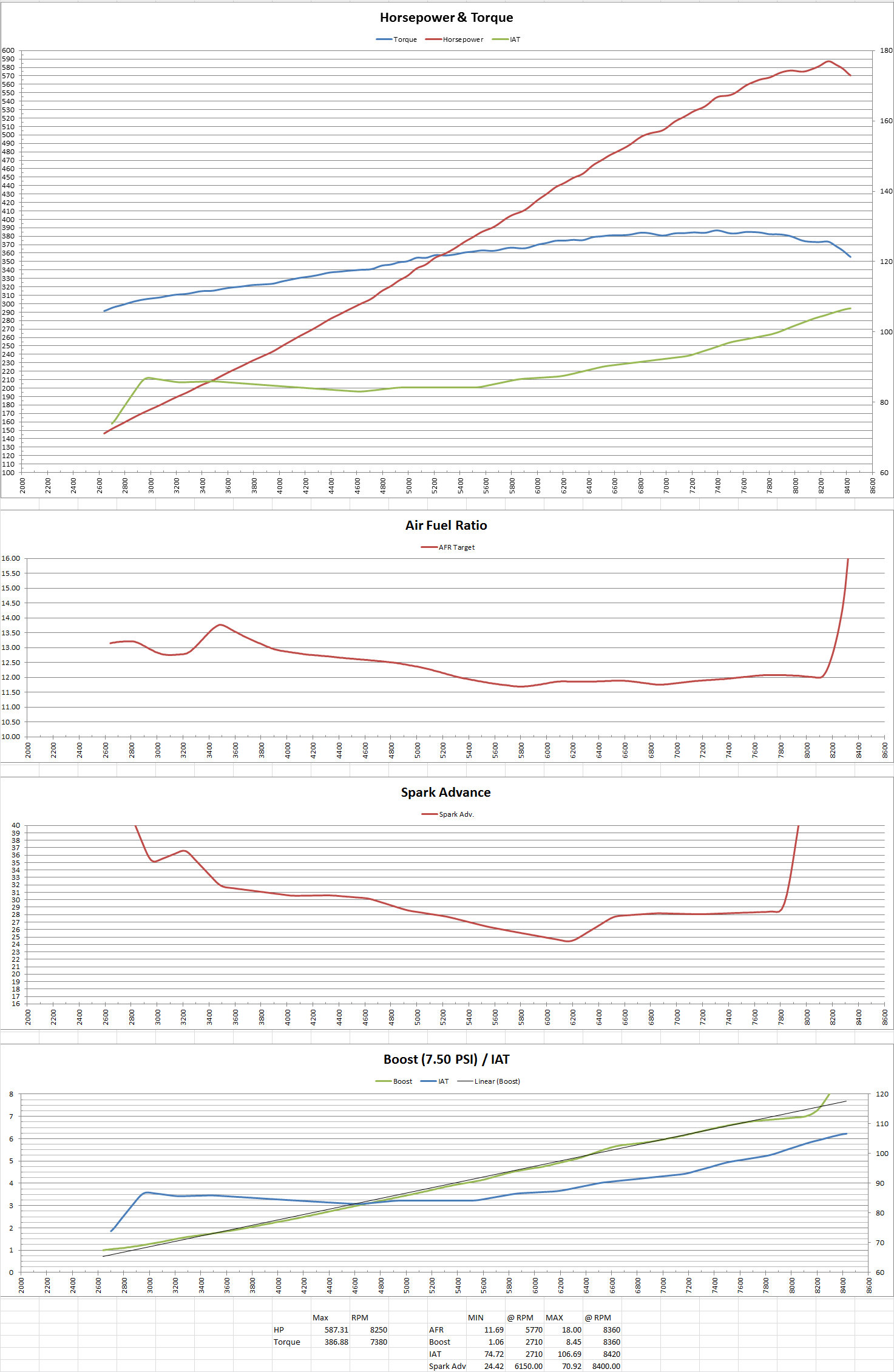

Dyno Graphs:
Alternate Images:
Other images:

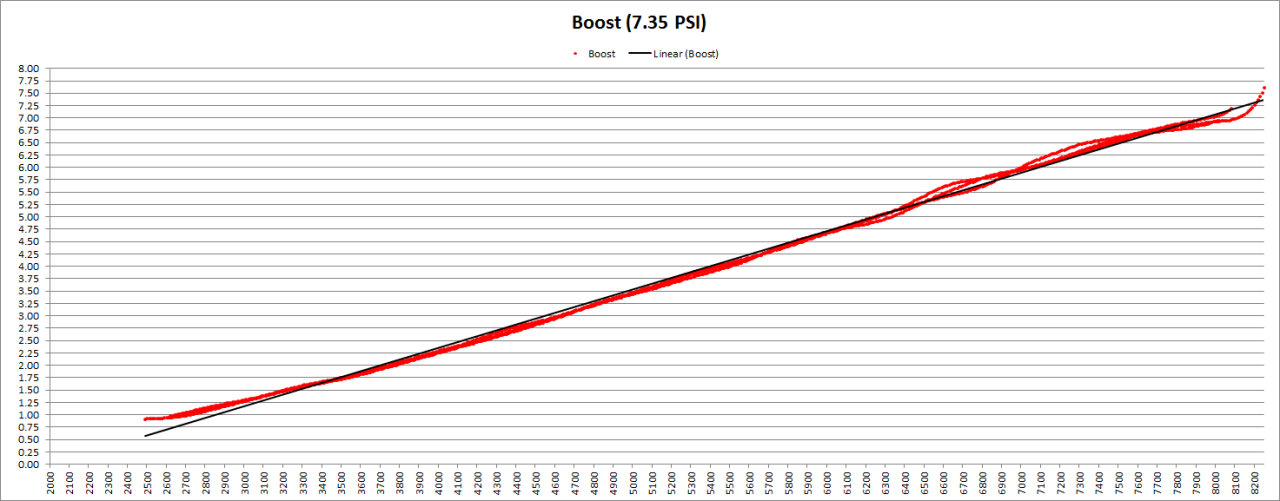

Boost Graph

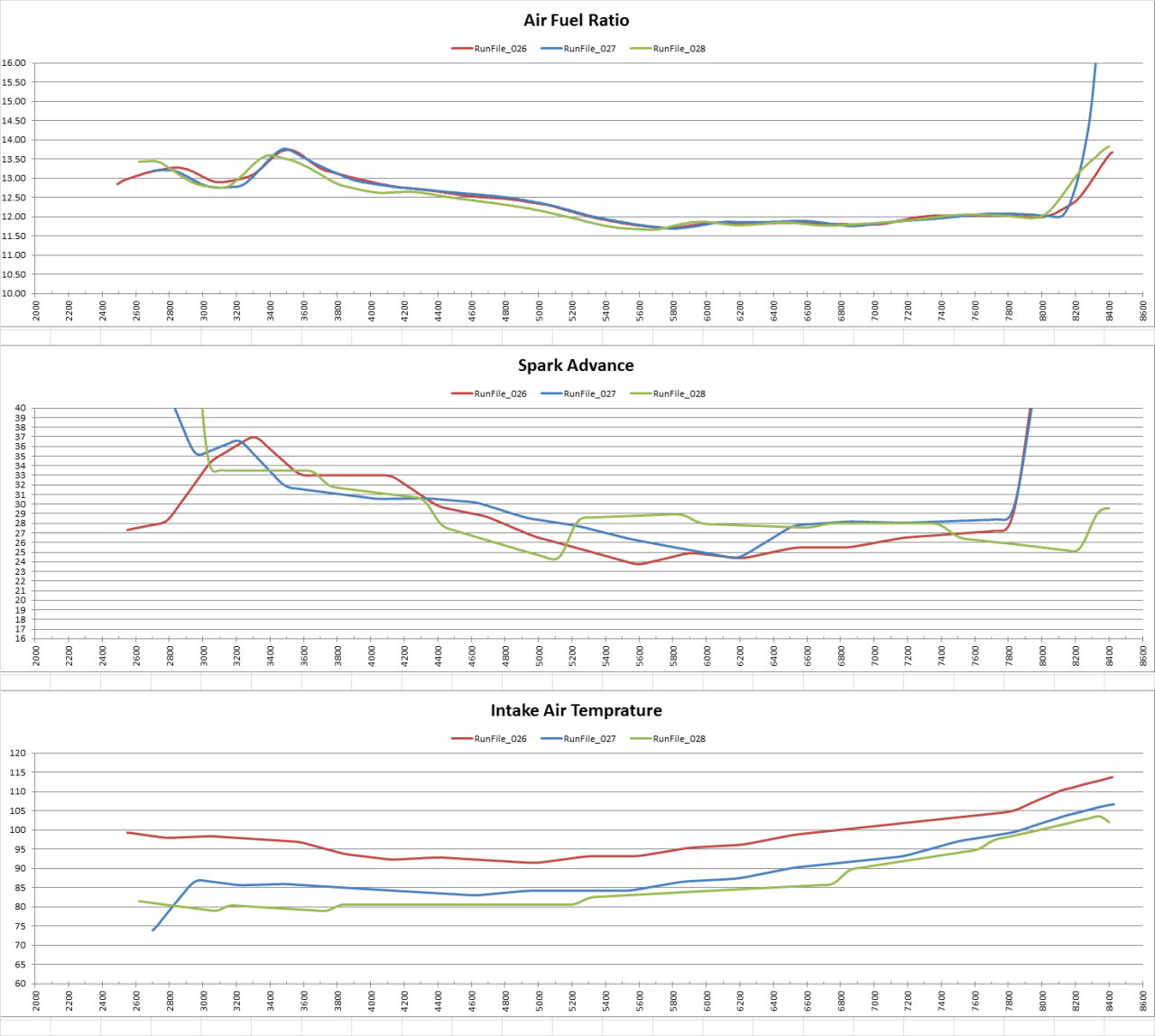

Engine Vitals Combined

Car and Modifications:

  • 2008 BMW M3
  • VF-620 Supercharger @ 7.35 PSI Boost
  • RPI X-Pipe
  • Full CATLESS
  • RPI Cat-Back Exhaust
  • 91 Octane
  • DCT

Conditions (Dynojet Weather Station):

  • Temperature:: 69.69 degrees F
  • Atmospheric pressure: 30.00 inHg
  • Humidity: 7%
  • Density Altitude:  936 Ft.
  • SAE Correction: 0.964
  • STD Correction:  0.992
  • Uncorrected: 1.000

Results:

  • SAE Corrected: 566whp @ 8250 RPM, 373wtq @ 7380 RPM
  • STD Corrected: 583whp, 384wtq
  • Uncorrected: 587whp, 387wtq

Dyno Database:

Individual Dyno Results:

Individual dyno results are shown below.  The legend below has the following meaning:

  • Dyno Run:  Dyno run file
  • Timestamp
  • Temp(F) = Temperature (Farenheit)
  • RelH = Relative Humidity
  • Pressure(Hg) = Barometric Pressure
  • DA(ft) = Density Altitude
  • IAT(F) = Intake Air Temperature (Farenheit)
  • WHP(unc) = Uncorrected wheel horsepower
  • WTQ(unc) = Uncorrected wheel torque
  • WHP(SAEd) = Dynojet SAE corrected wheel horsepower (SAE-1349)
  • WTQ(SAEd) = Dynojet corrected wheel torque (SAE-1349)
Dyno Run Timestamp Temp(F) RelH Press(Hg) DA(ft) IAT(F) WHP(unc) WTQ(unc) WHP(SAEd) WTQ(SAEd)
Run_026 09:02:44 70.21 7.00 30.01 958 114 571.2 377.6 550.0 363.5
Run_027 08:55:36 69.69 7.00 30.00 936 107 587.3 386.6 566.2 373.0
Run_028 08:49:36 68.60 7.00 30.00 865 104 584.3 389.6 563.5 375.7

* Entry used for the Dyno Database
