Dyno Results ESS VT2 625 Dyno Results @7psi: 574.42whp STD
Vital Statistics
  • Vehicle / Motor
  • Dyno Type
  • Dyno Correction
  • Download Dyno Files
  • Boost Log
BMW E9x M3 (S65 Motor)
Dynojet
SAE (J1349)
Download-1
Boost pressure (7.00 PSI) is not verified. Boost log not available.
Configuration / Modifications:
  • ESS Supercharger VT2-625 @ 7.00 PSI Boost
  • Aquamist Methanol Injection
  • Both CAT Delete
  • Gintani Cross-Pipe
  • Borla Quad-Resonator Exhaust
  • 93 Octane (US), 97.5 Octane (RON)
  • Dual Clutch Transmission
Measured Results:
  • Torque
  • Horsepower
374 FT/LBS
563 HP
@ 7550 RPM
@ 8250 RPM
(507.1 NM)
(570.8 PS)
(51.71 KGM)
(419.8 KW)
Dyno Graphs:
Videos:
Other images:
Dyno Correction Factors (Weather, Density Altitude, etc.)

Car and Modifications:

  • 2009 BMW M3
  • ESS VT2-625 Supercharger kit @ 7.0 PSI Boost +Meth
  • Aquamist HFS-3 Methanol Injection
  • Both CAT Delete
  • Gintani X-Pipe
  • Borla Exhaust
  • 93 Octane
  • DCT

Conditions:

  • Temparature:: 51.98 degrees F
  • Atmospheric pressure: 28.90 inHg
  • Humidity: 31%
  • Density Altitude:  2363 Ft.
  • SAE Correction: 0.990
  • STD Correction:  1.018
  • Uncorrected: 1.000

Results:

  • SAE Corrected: 563whp @ 8250 RPM, 374wtq @ 7550 RPM
  • STD Corrected: 577whp, 383wtq
  • Uncorrected: 568whp, 377wtq

Dyno Database:

Individual Dyno Results:

The legend below has the following meaning:

  • Dyno Run:  Dyno run file
  • Timestamp
  • Temp(F) = Temperature (Farenheit)
  • RelH = Relative Humidity
  • Pressure(Hg) = Barometric Pressure
  • DA(ft) = Density Altitude
  • WHP(unc) = Uncorrected wheel horsepower
  • WTQ(unc) = Uncorrected wheel torque
  • WHP(SAEd) = SAE Corrected Horsepower using Dynojet weather station.
  • WTQ(SAEd) = SAE Corrected Torque using Dynojet weather station.

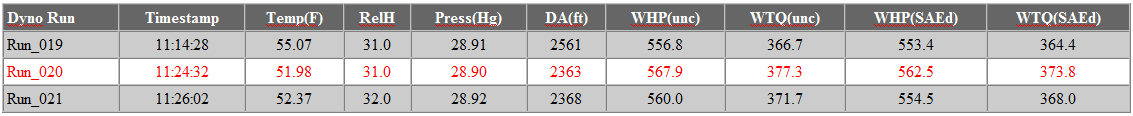

Dyno Run Timestamp Temp(F) RelH Press(Hg) DA(ft) WHP(unc) WTQ(unc) WHP(SAEd) WTQ(SAEd)
Run_019 11:14:28 55.07 31.0 28.91 2561 556.8 366.7 553.4 364.4
Run_020 11:24:32 51.98 31.0 28.90 2363 567.9 377.3 562.5 373.8
Run_021 11:26:02 52.37 32.0 28.92 2368 560.0 371.7 554.5 368.0

* Entry used for the Dyno Database
