Dyno Results
Vital Statistics
  • Vehicle / Motor
  • Dyno Type
  • Dyno Correction
  • Download Dyno Files
BMW E9x M3 (S65 Motor)
Dynapack
STP / STD
Download-1
Configuration / Modifications:
  • Active Autowerke Underdrive Pulley
  • BMC Filter
  • Akrapovic Evolution Exhaust System (Titanium)
  • Active Autowerke ECU
  • 93 Octane (US), 97.5 Octane (RON)
  • 6-Speed Manual Transmission
Measured Results:
  • Torque
  • Horsepower
280 FT/LBS
379 HP
@ 5755 RPM
@ 8100 RPM
(379.6 NM)
(384.3 PS)
(38.71 KGM)
(282.6 KW)

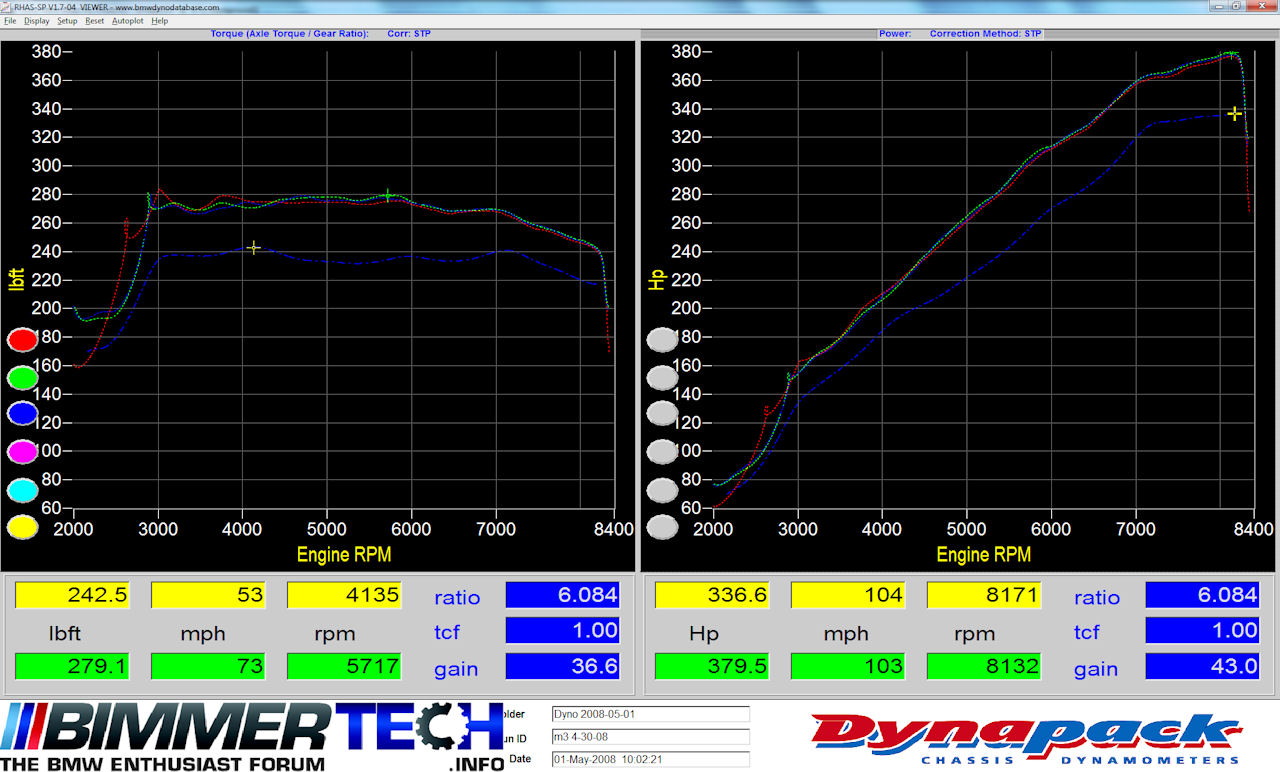

Dyno Graphs:
Horsepower

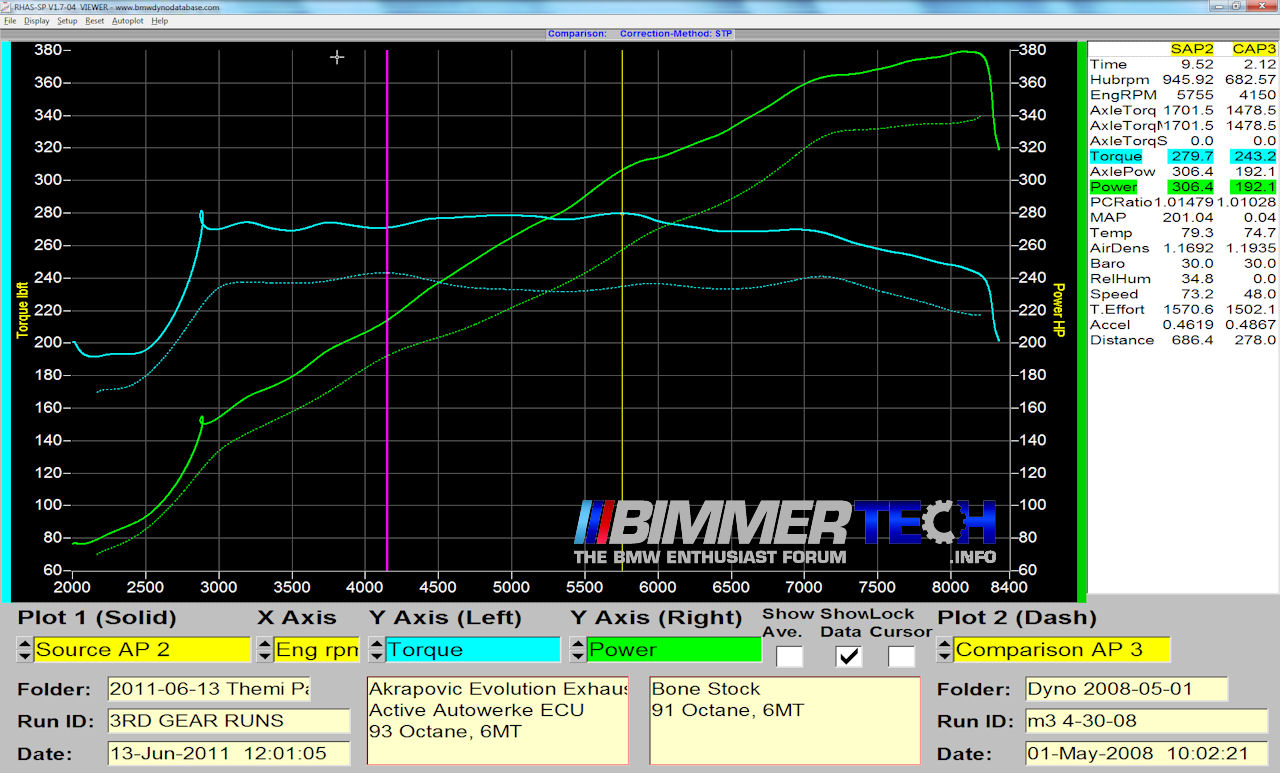

Alternate Images:
Torque
All Runs


Car and Modifications:

  • 2008 BMW M3
  • BMC Filter
  • Akrapovic Evolution Exhaust
  • Active Autowerke Underdrive Pulley
  • Active Autowerke ECU
  • 6MT
  • 93 Octane

Conditions:

  • Temparature:: 79.3 degrees F
  • Atmospheric pressure: 30.02 inHg
  • Humidity: 34.15%
  • SAE Correction: 0.986
  • STD Correction:  1.015
  • Uncorrected: 1.00

Results:

  • SAE Corrected: 369whp @ 8100 RPM, 272wtq @ 5755 RPM
  • STD Corrected: 379whp, 280wtq
  • Uncorrected: 374whp, 276wtq

Dyno Database:

Dynapack settings:

  • Range:  2000-8400 RPMs
  • Gear:  3rd Gear 6MT
  • Dynapack gear ratio:  6.084 = 1.581 * 3.846
  • Ramp Rate:  1 Sec = 400 RPMs
  • Ramp Time:  16.0 seconds = ((8400-2000) / 400)
  • Settling time:  4-seconds
  • Lead-in:  00 RPMs

Individual Dyno Results:

Individual dyno results are shown below.  SAE corrected, STD corrected, and Uncorrected.

The legend below has the following meaning:

  • Dyno Run:  Dyno run file
  • Boost Avg:  Boost calculated using trend line.  This is the "official" boost for this dyno run.
  • Boost Peak:  Peak boost observed on this dyno run.
  • Temp(F) = Temperature (Farenheit)
  • RelH = Relative Humidity
  • Pressure(Hg) = Barometric Pressure
  • DA(ft) = Density Altitude
  • WHP(unc) = Uncorrected wheel horsepower
  • WTQ(unc) = Uncorrected wheel torque
  • WHP(std) = Dynapack STD corrected wheel horsepower
  • WTQ(std) = Dynapack STD corrected wheel torque
  • WHP(sae) = Dynapack SAE corrected wheel horsepower (SAE-J1349)
  • WTQ(sae) = Dynapack SAE corrected wheel torque (SAE-J1349)



Dyno Run Temp(F) RelH Press(Hg) DA(ft) WHP(unc) WTQ(unc) WHP(std) WTQ(std) WHP(sae) WTQ(sae)
Run_001 78.7 34.4 30.028 1293 371.4 279.6 376.6 283.6 366.2 275.5
Run_002 79.3 34.2 30.029 1332 373.5 277.3 379.1 281.5 368.7 273.8
Run_003 80.0 34.6 30.027 1383 371.9 276.4 377.6 280.7 367.4 273.1

* Entry used for the Dyno Database
