Dyno Results
Vital Statistics
  • Vehicle / Motor
  • Dyno Type
  • Dyno Correction
  • Download Dyno Files
  • Boost Log
BMW E9x M3 (S65 Motor)
Dynapack
Uncorrected
Download-1
Boost pressure (8.05 PSI) verified with boost log.
Configuration / Modifications:
  • ESS Supercharger VT2-625 @ 8.05 PSI Boost
  • Methanol Injection
  • Both CAT Delete
  • Gintani Cross-Pipe
  • 94 Octane (US), 98 Octane (RON)
  • Dual Clutch Transmission
Measured Results:
  • Torque
  • Horsepower
411 FT/LBS
636 HP
@ 7300 RPM
@ 8400 RPM
(557.2 NM)
(644.8 PS)
(56.82 KGM)
(474.3 KW)
Dyno Graphs:
Alternate Images:

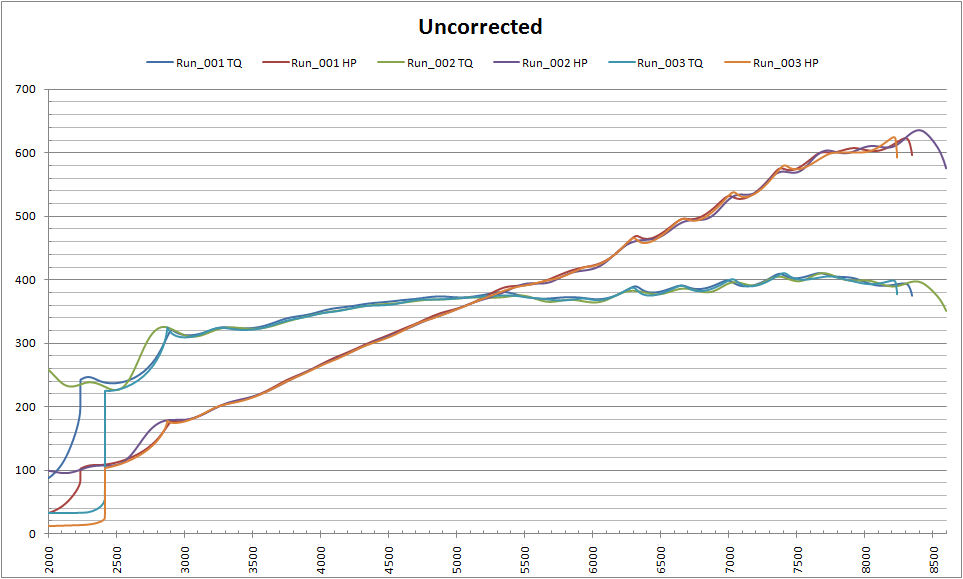

All Runs
Official Dyno Chart (SAE-Adapted)
Videos:
Other images:
Air Fuel Ratio
Comparing Dyno ECU AFR's to Dyno AFR's
This graph shows the difference between the AFR's read via OBD port, and those seen by the AFR sniffer on the dyno. The AFR's on the OBD port are exactly what the ECU sees, and the AFR's fromt he dyno come at the tail end, after the mufflers, etc. Since the ECU reads Bank-1 and Bank-2 AFR's, both are included in this comparison. It appears from this graph, that the dyno sees the AFR's a little leaner than the ECU.
Boost log analysis: 8.05 PSI


Car and Modifications:

  • 2008 BMW M3
  • ESS VT2-625 Supercharger
  • +Water-Meth injection
  • DCT
  • Catless STOCK exhaust
  • 94 Octane

Conditions:

  • Temparature:: 77.22 degrees F
  • Atmospheric pressure: 29.95 inHg
  • Humidity: 57%
  • SAE Correction: 0.99
  • SAE-Adapated (Dynapack):  1.03
  • Uncorrected: 1.00

Results:

  • SAE Adapted: 657whp @ 8400 RPM, 425wtq @ 7700 RPM. 8.05 PSI
  • SAE-Corrected: 631whp, 408wtq
  • Uncorrected: 636whp, 411wtq

Dyno Database:

Dyno Testing Procedures:

All of the dyno runs are filmed in HiDef video to document the authenticity and independence of the tests.  A Kestral 4500 portable weather station is brought to take independent weather measurements.  This provides a cross-check for the dyno weather station to ensure that the dyno weather station is reading accurately and has not been tampered or altered in any way.

Dynapack settings:

  • Range:  2000-8600 RPMs
  • Gear:  4th Gear DCT
  • Dynapack gear ratio:  5.29 = 1.68 * 3.15
  • Ramp Rate:  1 Sec = 400 RPMs
  • Ramp Time:  16.5 seconds = ((8600-2000) / 400)
  • Settling time:  2-seconds
  • Lead-in:  20 RPMs

Additional Information:

  • There is no ice packed on the manifold.
  • No water sprayed on the intercooler.
  • No extended cool downs.
  • No 10-minute breaks between runs.

Just:

  • ESS VT2-625 running production software
  • 94 Octane +Water-Meth
  • Catless STOCK exhaust

Individual Dyno Results:

Individual dyno results are shown below.  SAE corrected results are shown twice, using two different sources.  The first source (dpc) are the SAE corrected results straight from the Dynapack.  The second source (sae) of SAE corrected results are obtained by using the Kestral 4500 weather station data for each individual dyno run and running it through an independent SAE correction formula.  This ensures that the dyno results are accurate and can be independently audited and verified for authenticity and accuracy.

There are a few different horsepower correction standards.  The two most common are STD and SAE.  Dynapack "SAE-Corrected" is most closely related to "STD" but uses a different reference for humidity than the original STD standard.

The legend below has the following meaning:

  • Dyno Run:  Dyno run file
  • Boost Avg:  Boost calculated using trend line.  This is the "official" boost for this dyno run.
  • Boost Peak:  Peak boost observed on this dyno run.
  • Temp(F) = Temperature (Farenheit)
  • RelH = Relative Humidity
  • Pressure(Hg) = Barometric Pressure
  • DA(ft) = Density Altitude
  • WHP(unc) = Uncorrected wheel horsepower
  • WTQ(unc) = Uncorrected wheel torque
  • WHP(dpc) = Dynapack SAE corrected wheel horsepower (SAE-J1349)
  • WTQ(dpc) = Dynapack corrected wheel torque (SAE-J1349)
  • WHP(sae) = SAE-Adapted wheel horsepower (SAE-J1349)
  • WTQ(sae) = SAE-Adapted wheel torque (SAE-J1349)



Dyno Run Boost Avg. Boost Peak Temp(F) RelH Press(Hg) DA(ft) WHP(unc) WTQ(unc) WHP(dpc) WTQ(dpc) WHP(sae) WTQ(sae)
Run_001 8.20 8.65 70.3 58.9 29.80 1053 622.98 410.71 617.93 407.34 615.57 405.83
Run_002 8.05 8.38 74.4 51.4 29.80 1321 635.87 411.14 631.50 408.31 631.19 408.12
Run_003 8.40 8.39 77.6 46.3 29.80 1522 624.89 411.20 620.69 408.49 622.50 409.63

* Entry used for the Dyno Database

Boost Log:

Dynapack changed their file format and we can no longer read the files. We had to rely on the dyno operator to export the dyno data as Excel spreadsheets. According to the dyno operator (Shawn Church) the boost gauge had a static pressure of 0.13 PSI. Shawn explained via text message that 0.13 PSI needs to be subtracted from all boost gauge results.
